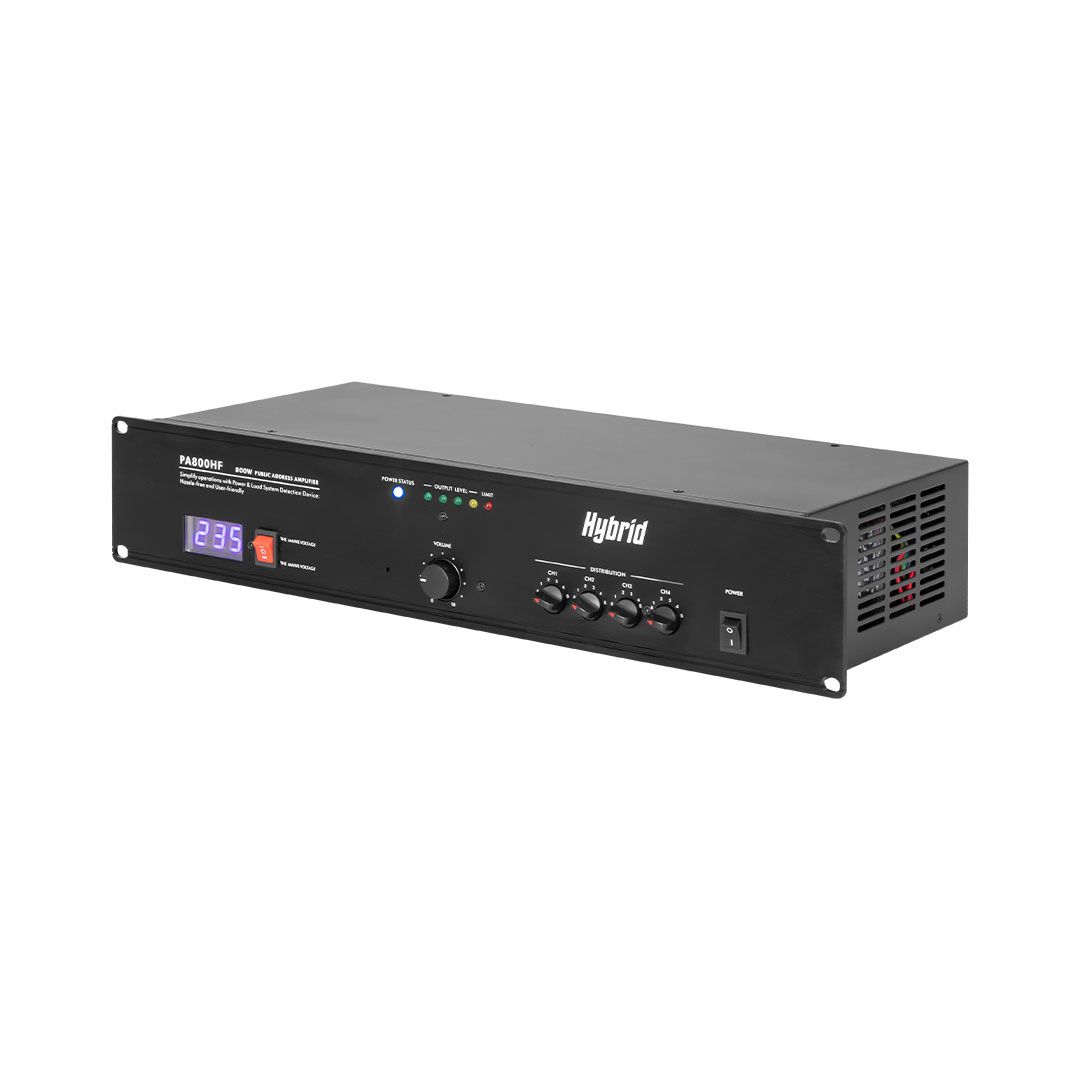

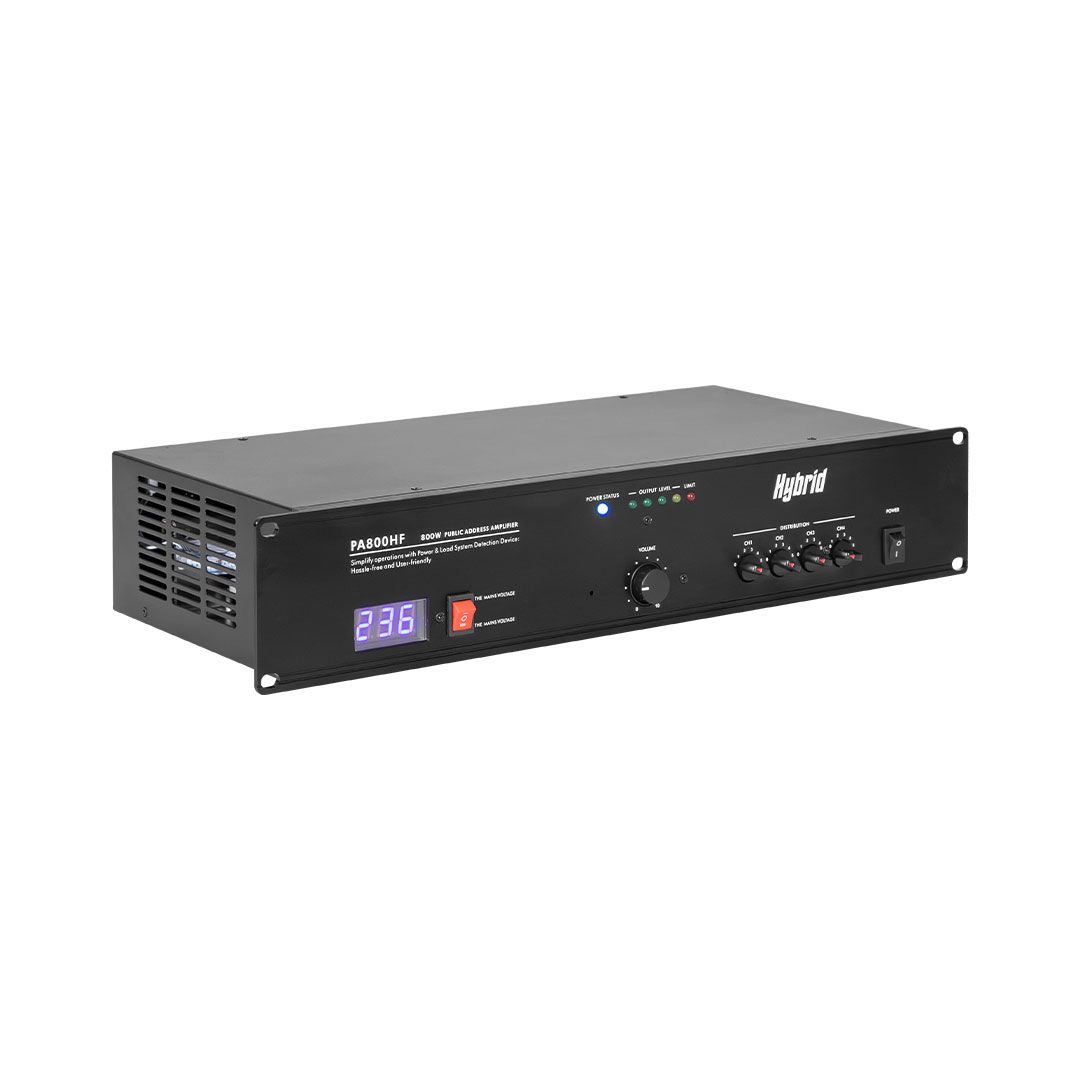

Hybrid PA800HF – 800W Public Address Slave Amplifier
The Hybrid PA800HF is a powerful slave amplifier designed for large-scale 100V installations where extra coverage and reliability are essential. Delivering 800W of efficient Class-D power, it integrates seamlessly with master PA systems, providing clear, consistent sound across wide spaces while keeping energy use low.
Key Features
- Class-D Technology – 60% lighter and 40% more energy-efficient than analogue designs
- Flexible Outputs – 4–16Ω low impedance, 4-zone 70V / 100V output with individual volume control

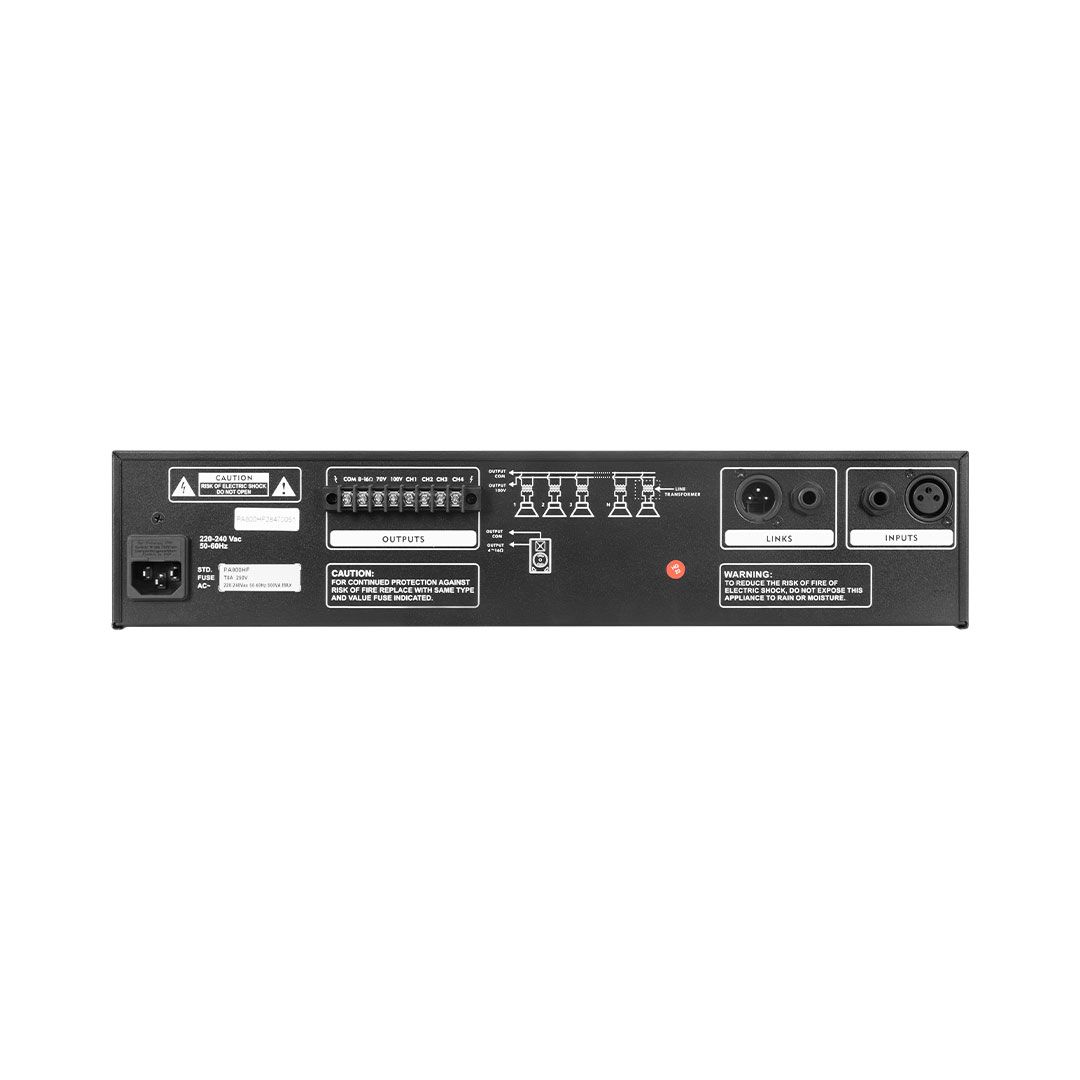

- Audio Connectivity – Balanced XLR and Unbalanced 6.35mm TRS inputs with link outputs for easy expansion
-

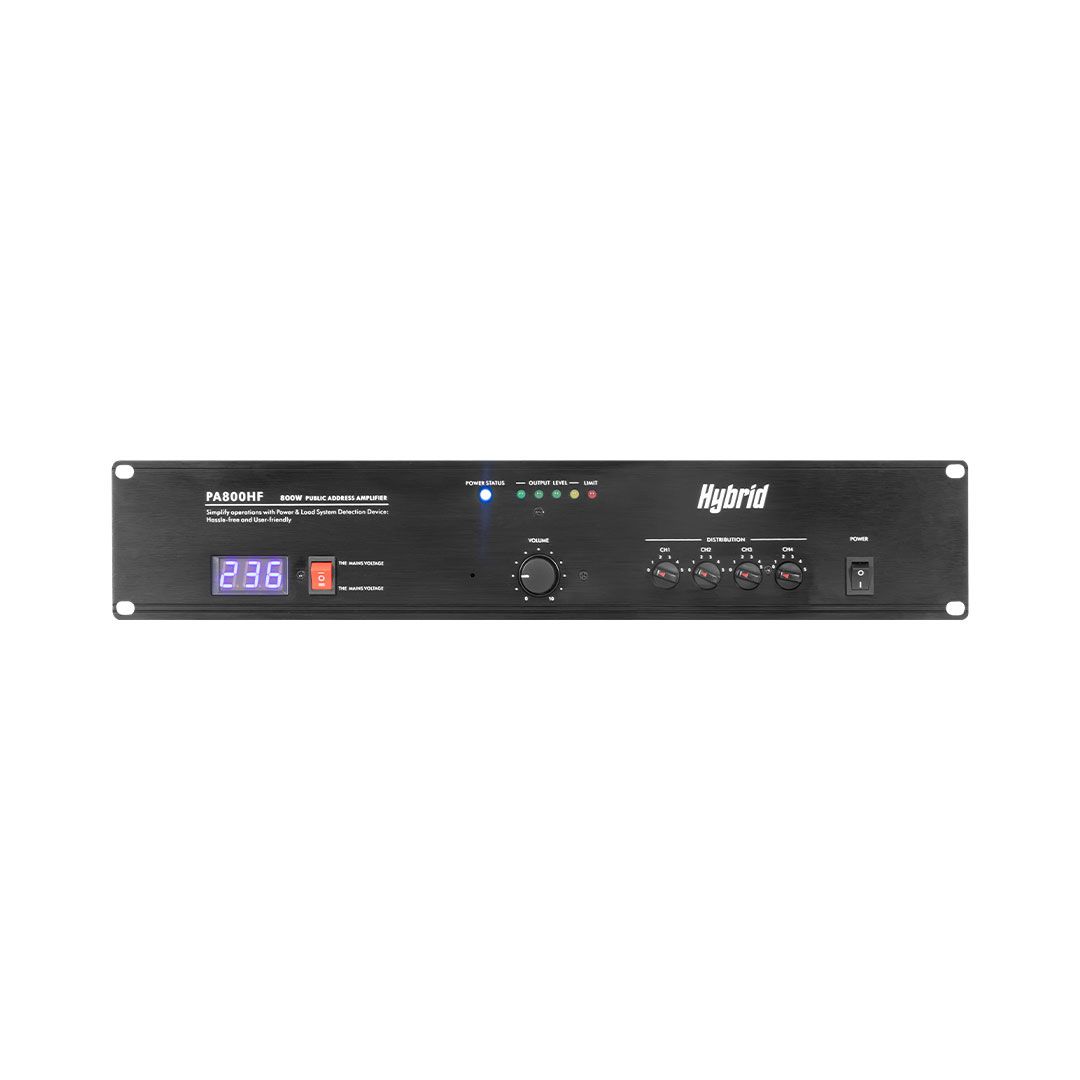

User Controls & Display
- Master output level control
- Zone level adjustment
- 220V AC mains voltage display
- 5-segment LED output signal meter
- Power status LED
- Comprehensive Protection – Over-temperature, over-voltage, over-current, short-circuit, input limiting, and output current protection
Technical Specifications
- Rated Power: 800W
- Output Modes: 4–16Ω / 70V 4-Zone /100V 4-Zone
- Power Supply: 220–240 VAC, 50–60 Hz
- Weight: 5.9 kg
- Dimensions: 482 × 220 × 88.8 mm (2U standard rack-mount)
