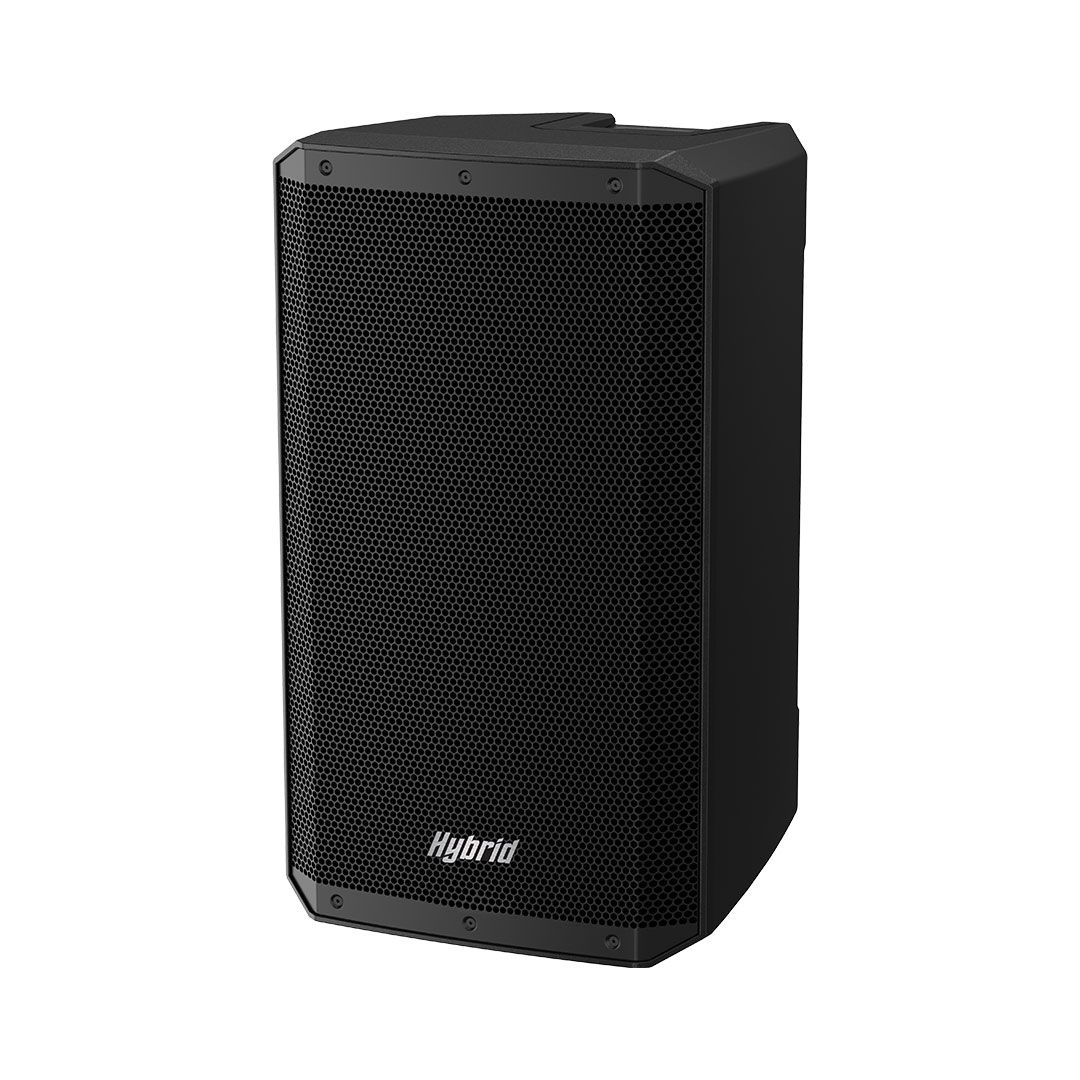

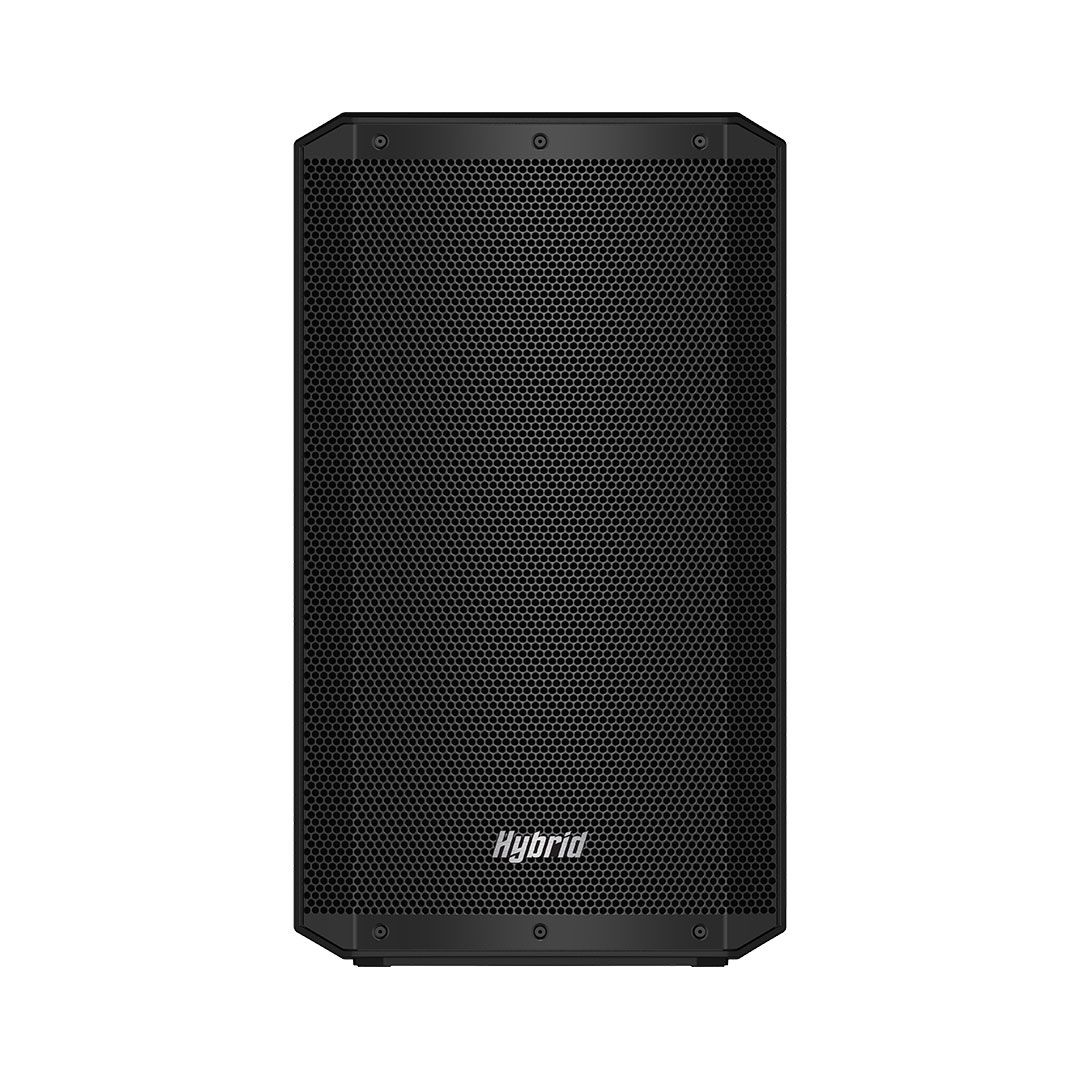

12″ 2-way passive full range speaker
The Hybrid PB12N MKIII is a durable passive PA speaker with a powerful 12″ woofer and 1.35″ titanium HF driver, delivering 220W AES power and 95dB sensitivity. It offers a 58Hz–18kHz frequency response and 8Ω impedance, with dual Speakon connectors for input and linking. Housed in a rugged ABS cabinet, it’s ideal for live sound and portable setups.
LF Driver: 12”, 2.5” Voice Coil, 50 0z Ferrite Magnet, 8Ω, 200w (AES)
HF Driver: 15 0z Magnet, 1.35” (34mm) Voice Coil, Titanium Diaphragm, 8Ω, 20w (AES)
Frequency Response: 58Hz – 18kHz
Impedance: 8Ω
Power (AES): 220w
Sensitivity (1w/1m): 95dB
Inputs: 2 x Speakon 4 Pole, Input and Link
Cabinet Material: ABS
Dimensions (H x W x D): 616 x 354.9 x 351.5mm
Weight: 13.4kg
